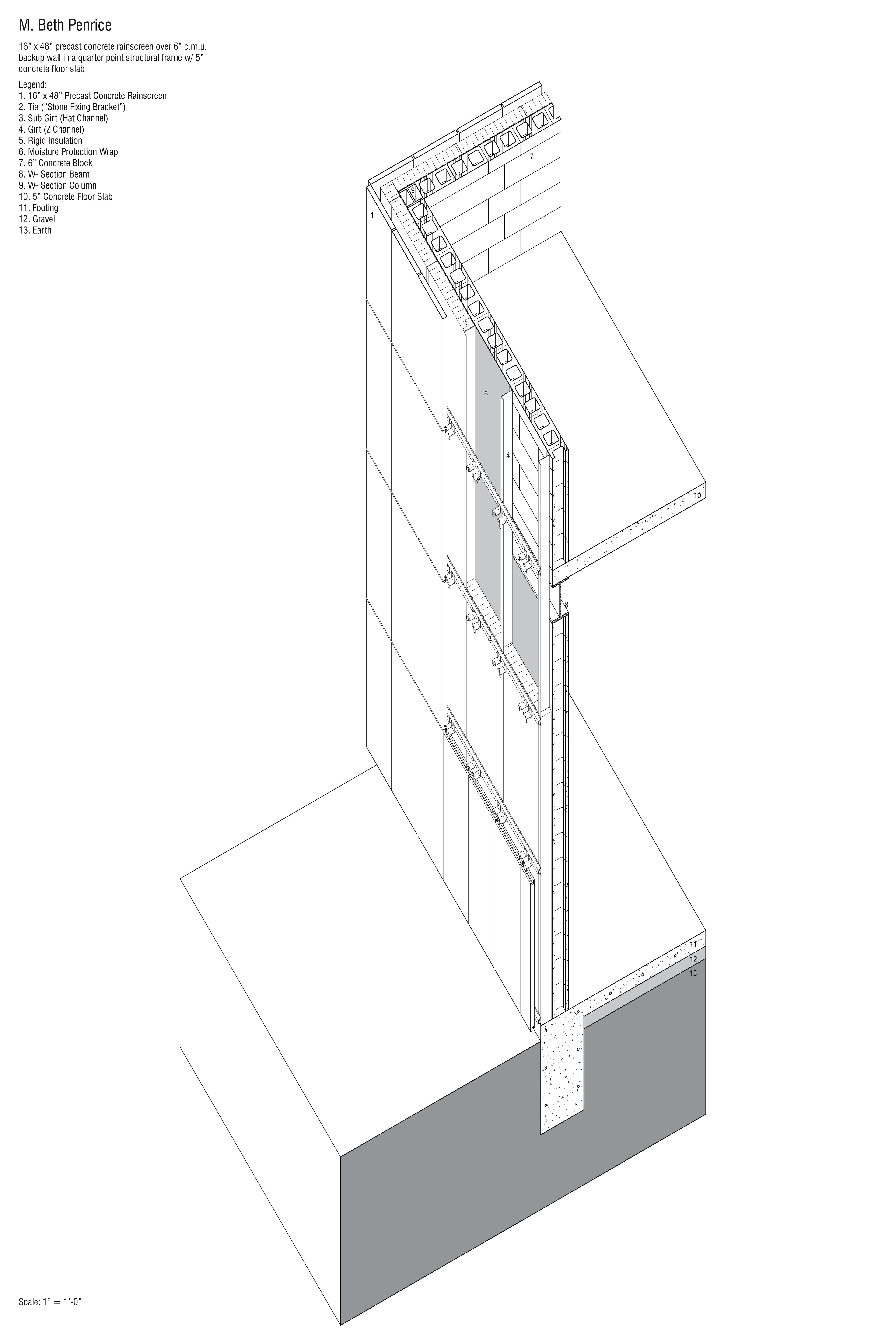

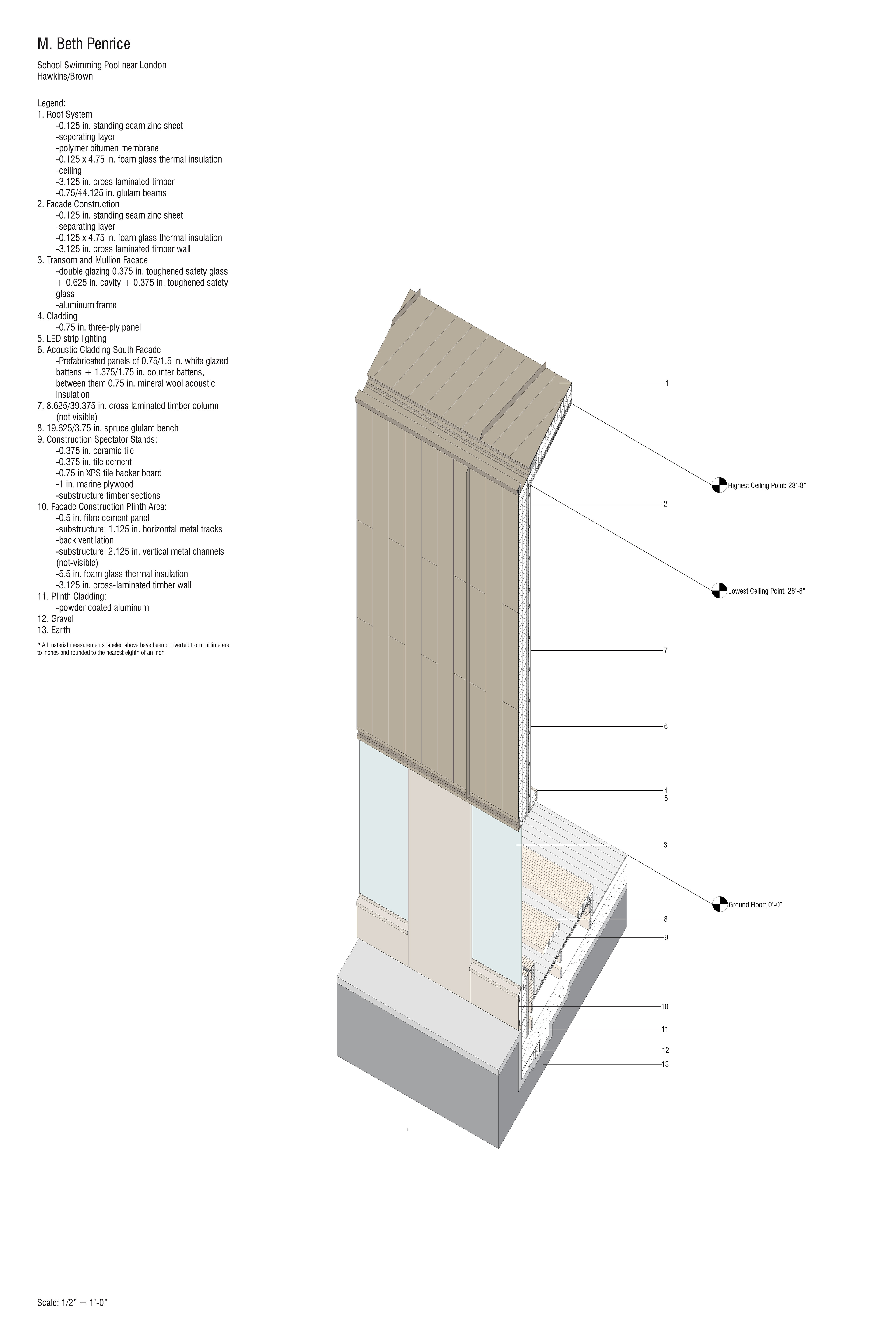

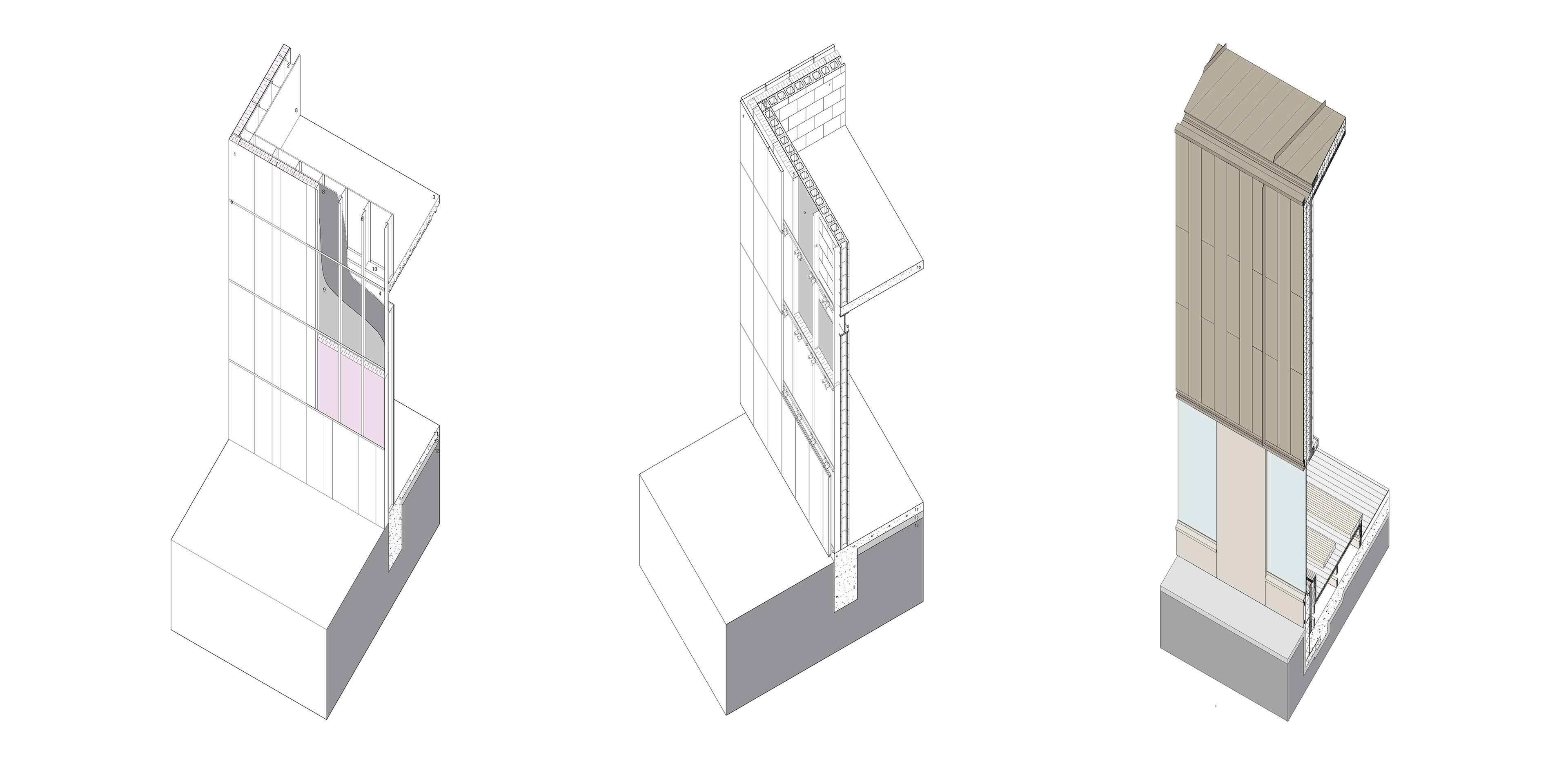

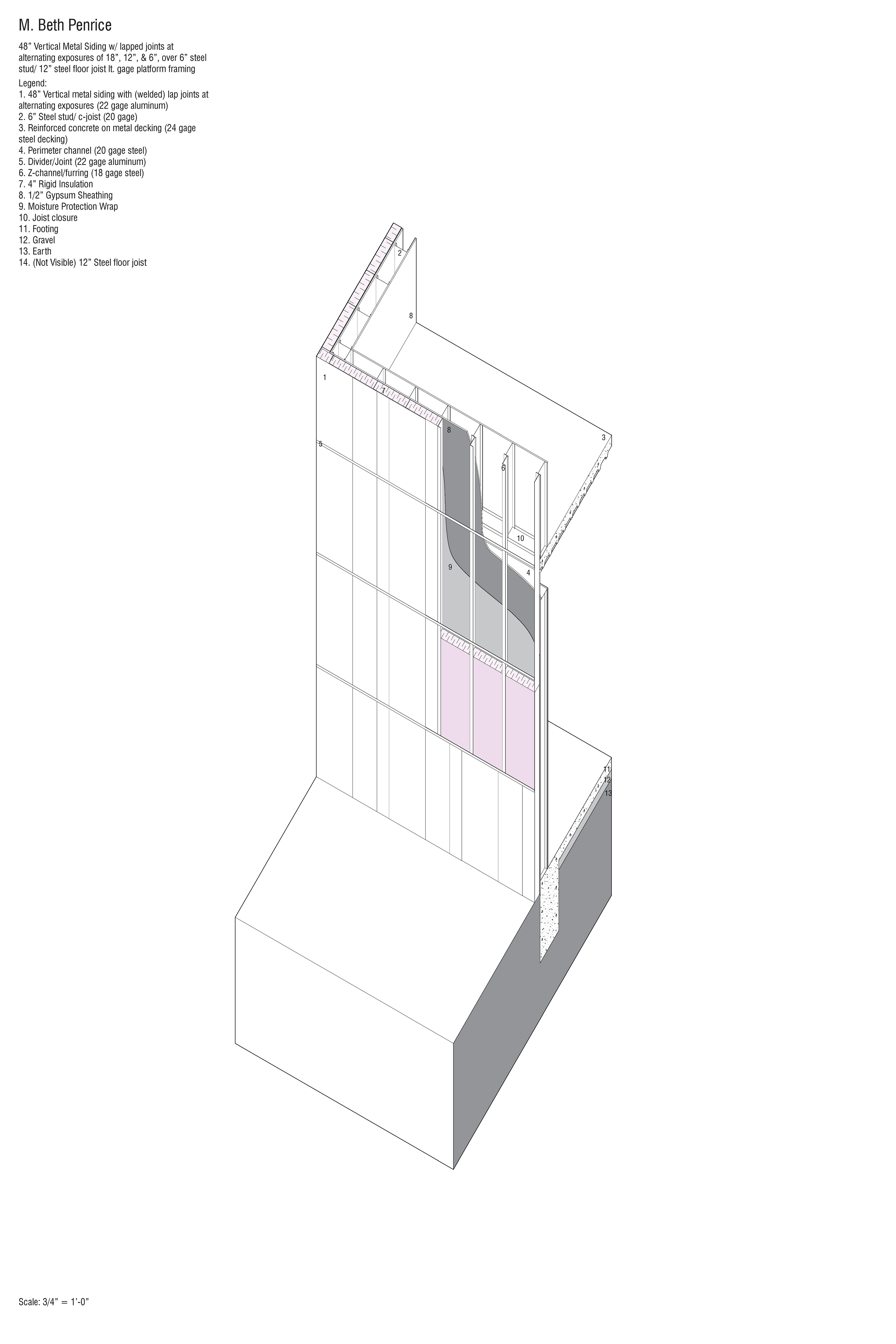

Featured below is a series of drawing from a semester in the Building Construction & Materials course. Each drawings focuses on a specific type of structure. First is a section taken from the School Swimming Pool near London, second is a lapped metal siding system with steel studs, last is a precast concrete rainscreen with a 6" c.m.u. back-up wall.
